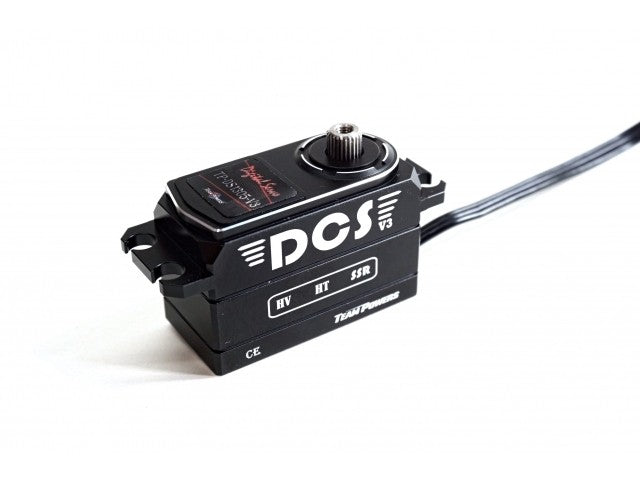

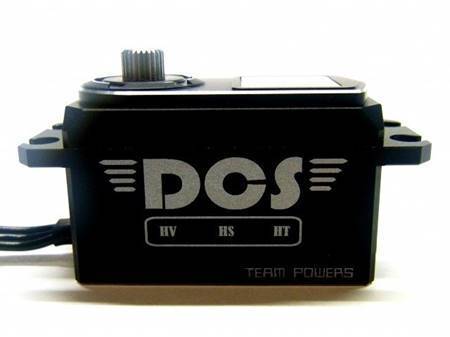

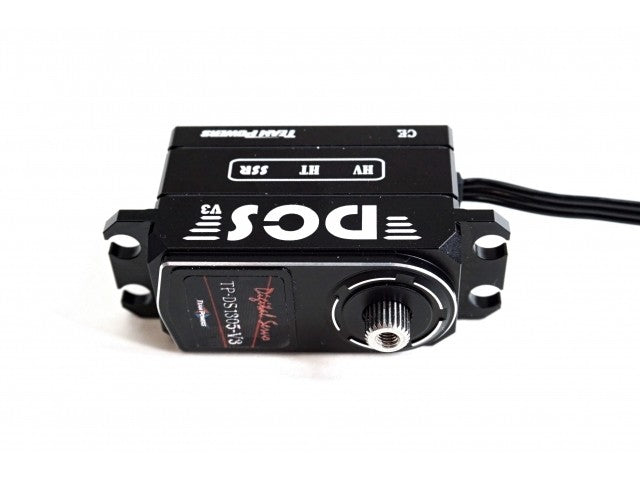

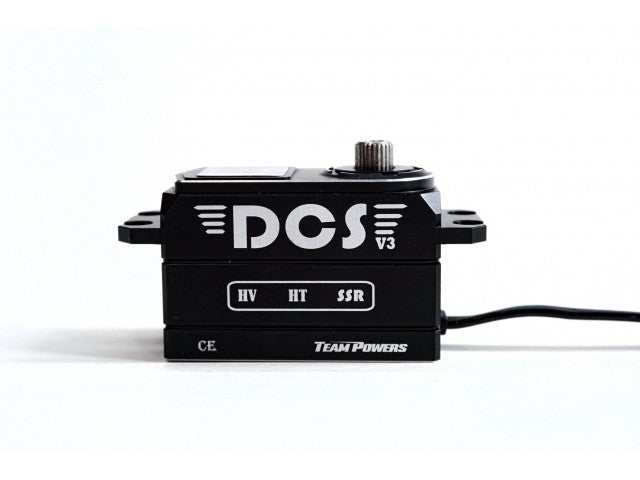

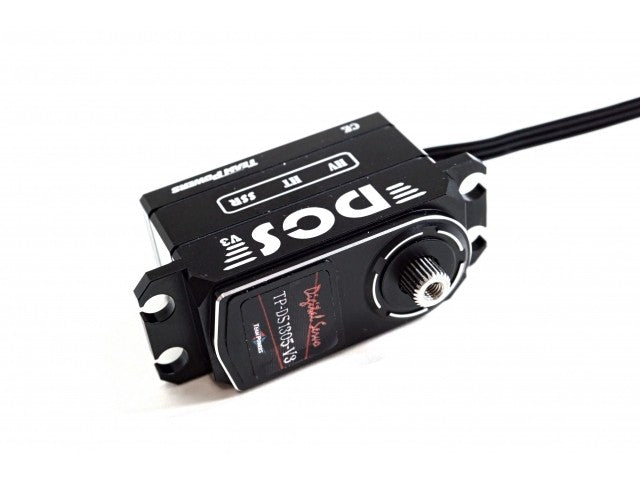

The Team Powers DCS 1305 is a high-performance digital coreless servo designed for low-profile applications. It features a hybrid titanium/steel gear for durability and a direct drive gear system for better efficiency.
This servo supports SSR mode for the highest response speed and has a crazy smooth rotation with no binding in the gear train. The operating voltage range is 4.8V to 8.4V and it has a weight of approximately 52g.
The dimensions of the servo are 41mm in length, 26.5mm in width, and 20mm in height. The stall torque is 9.5kg-cm at 6V, 12.5kg-cm at 7.4V, and 14.5kg-cm at 8.4V. The operating speed is 0.065 seconds per 60 degrees at 6V, 0.06 seconds per 60 degrees at 7.4V, and 0.055 seconds per 60 degrees at 8.4V. This servo is ideal for applications that require high torque and fast response times.
