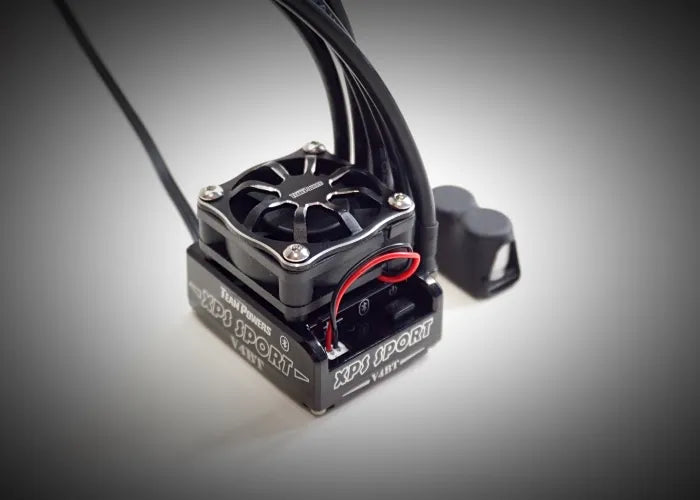

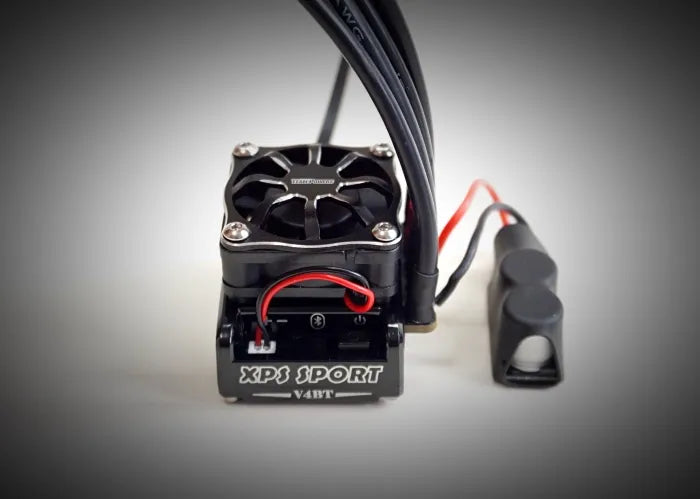

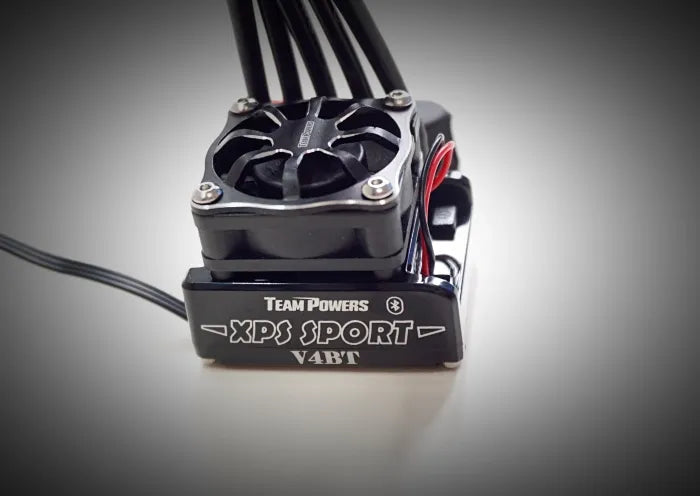

The Team Powers XPS Sport V4BT Sensored Brushless ESC delivers high-level control and performance for 1/10 scale RC racing. Built with an advanced 32-bit MCU, it offers ultra-smooth throttle response, precise braking control, and enhanced top-end power. Its lightweight plastic casing incorporates an optimized PCB layout and an included 30mm fan with dedicated mount, reducing operating temperatures by approximately 10°C compared to previous generations.
Equipped with Radon Pro V5BT firmware, this electronic speed controller supports full programming and firmware updates via iOS and Android mobile apps using an external Bluetooth device. The wireless connection unlocks real-time data analysis, tracking crucial metrics including throttle input/output, temperature, RPM, advanced timing, and voltage. With a built-in one-touch power switch and selectable 6V/7.4V BEC, it provides reliable functionality on 2S to 3S LiPo setups.
What mobile operating systems are compatible with the programming app?
The programming and telemetry app is available for both iOS and Android mobile devices.
What is the motor limit for this speed controller?
The XPS Sport V4BT supports brushless motors rated at 5.5T or higher.
What real-time data metrics can be monitored via the app?
The app provides real-time analysis for throttle input and output, temperature, RPM, advanced timing, voltage, minimum voltage, maximum temperature, maximum RPM, and maximum advanced timing.
What input voltages are supported?
The speed controller operates on 2S to 3S LiPo battery configurations.
